Medicine Security Firewall - Medical Pharmacy Refrigerators

As the medicine safety firewall of most medical institutions and pharmaceutical factories, medical pharmacy refrigerators shoulder the important responsibility of protecting medicines. At present, the medical pharmacy refrigerators on the market are mainly divided into two categories. One is the 2-8℃ pharmacy refrigerator, which is mainly used to store medicines and biological products. It is usually suitable for pharmacies, pharmaceutical factories, hospitals, epidemic prevention stations and health centers as key examples; the other is the pharmacy refrigerator & freezer, which can provide 2~8℃ refrigerated environment and -10~-40℃ frozen environment simultaneously, the product is suitable for blood stations, hospitals, epidemic prevention stations, universities, scientific research institutes, electronic chemical enterprises to name a few.

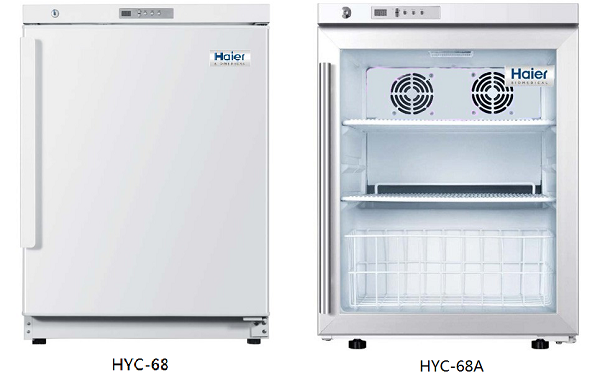

Haier Biomedical’s medical pharmacy refrigerators mainly include seven product series, which are comprehensively refined in four key areas of user requirements, they are: temperature, volume, function and appearance, that can provide the most suitable product solutions and optimized user experience according to the different needs. As the star product of Haier Biomedical pharmacy refrigerators, HYC-68/68A pharmacy refrigerators have been widely favored by the market due to their superior performance and compact body design. At the same time, many users have many queries about this product range. Recently we collected the most concerned questions about HYC-68/68A and have answered each of them as follows:

Q:

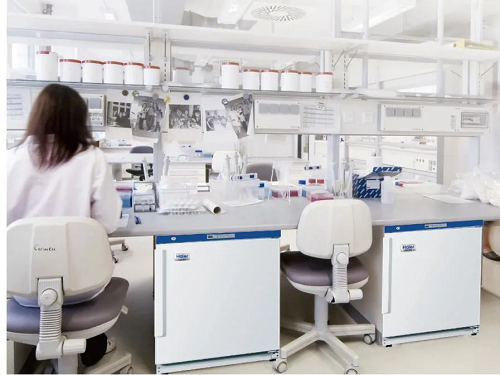

Hello, my laboratory needs a medical refrigerator that can be placed under the test bench. I want to know what the height of the HYC-68/68A is?

A:

The height of the HYC-68/68A is 670mm. Manufactured with an embedded design and can be placed under or on the test bench.

Q:

What unique advantages does HYC-68/68A have?

A:

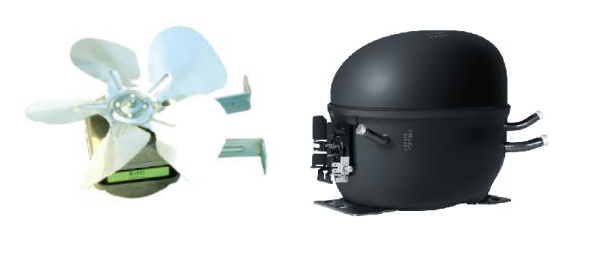

Superior product quality, ultra-low energy consumption and ultra-quiet are the main features of HYC-68/68A. The unit uses an Embraco inverter compressor, and both the evaporating fan and the condensing fan are EBM high-efficiency fans to ensure the stable and efficient operation of the refrigeration system. The product quality and performance have been tested in the market for a long time and have an excellent reputation.

Q:

Can you please provide more information about how the Haier Biomedical pharmacy refrigerators ensure temperature uniformity from a professional perspective?

A:

Haier Biomedical pharmacy refrigerators guarantee temperature uniformity mainly through the following three aspects:

The product design refers to the French standard FD X15-140, which is superior to YY-0086-2007 standard and is universal worldwide, applicable in high-end biopharmaceutical laboratories, more authoritative, stricter and more precise.

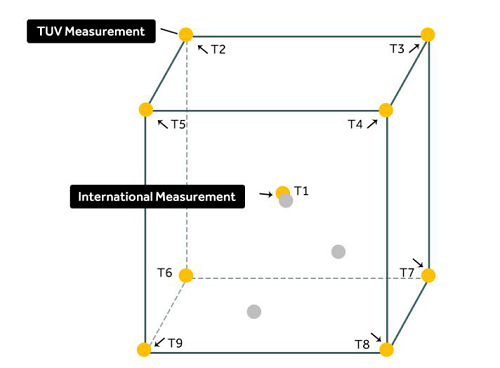

The temperature test adopts 9-point limit testing points distribution, which is more comprehensive and does not leave any dead corners: According to French standards, a 9-point array is used to track the most extreme position in the cabinet, find the values of all measuring points, and visually mark the temperature changes at all positions. Compared with the conventional 5-point test from other products on the market (shown by the gray dots), it can avoid the dead ends of wind circulation.

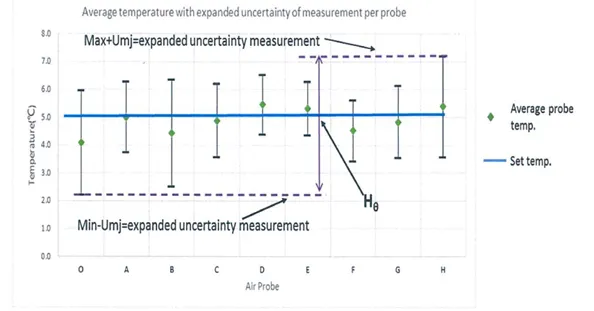

We adopt a more scientific internationally common method for measuring the uniformity and fluctuation value, avoiding the hidden danger of false true temperature data, truly reflecting the temperature change of the air and directly tracking the maximum value of each point in the refrigerator. The method of calculating the fluctuation value can avoid the hidden danger of false real temperature, truly reflect the temperature change of the air, and directly track the maximum and minimum values of each point in the unit. At present, the conventional number is the average temperature of 5 central points (as shown by the green dots in the figure), and the maximum and minimum values are ignored, resulting in users not knowing that the temperature exceeds the standard.

Q:

In addition to temperature uniformity, what other measures do HYC-68/68A have to ensure sample safety?

A:

Great question, the HYC-68/68A has multiple alarm functions. It has been manufactured with an upgraded sound and light alarms, high temperature alarm, sensor failure alarm, door ajar alarm, and power failure alarm. It is also equipped with a remote alarm interface, which can send real-time notification to users; Equipped with dual DC fans that can be powered by 12V safe voltage; at the same time, it also has a series of user friendly designs, such as temperature display with two optional modes of real-time display and analog display and the door handle adopts an integrated design. Meanwhile, it is equipped with 1 test hole, which can provide users with more choices and more convenient operating experience.

Q:

Does the HYC-68/68A support automatic defrosting?

A:

HYC-68/68A is equipped with an electric heating door, which ensures automatic defrosting and no condensation in harsh environments.

Haier Biomedical, insisting on intelligent protection of life and being empowered by technology, is committed to being the best provider of your biomedical cold chain comprehensive solutions!
