Haier Biomedical -30℃ Biomedical Freezer

Click to check the video demo

Dual Refrigeration System

Intelligent Defrosting Technology

Hydrocarbon Energy Saving

Microcomputer Control System

Typical Installation and Application

Applicable for blood stations, hospitals, CDCs, scientific research institutes, chemical industry and other related industries, Haier’s product can cryopreserve plasma, biological products, components, materials and other items that need to be kept at low temperature.

Product Advantages

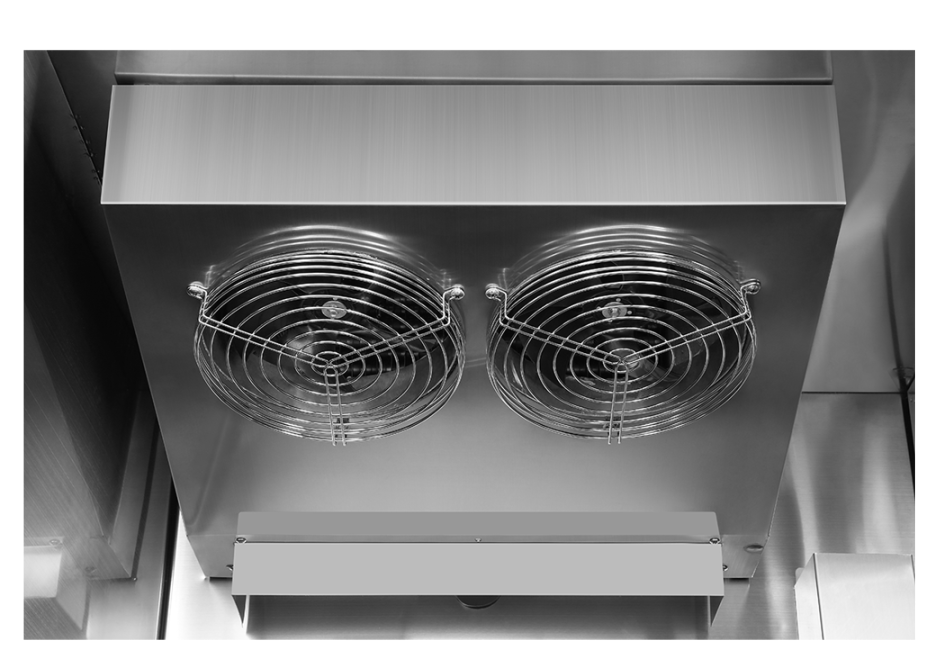

Dual Independent Refrigeration Systems: Superior Safety

Auto defrosting system plus constant refrigeration system, has successfully solved the industries problem that inside temperatures rise sharply when fan cooling refrigerators defrost; If one system fails, the other one would reach -25℃ quickly, which doubles the safety of the sample; With air cooling technology, the inside uniformity can reach ±3℃ (±5℃ during the defrosting period).

Intelligent Defrosting: Prolongs the Defrosting Cycle, Safeguarding the Stability of the Storage Temperature

The intelligent defrosting is two times less than the traditional defrosting, effectively draws down the temperature fluctuation caused by defrosting during sample storage cycle by intelligently identifying the amount of frost on the evaporator.

Advanced Defrosting Technology Eradicates the Hidden Danger of Electric Leakage

Haier applies full-automatic hot gas defrosting technology throughout the whole machine. Compared with heater wire defrosting technology, it eliminates the risk of electric leakage due to wire aging, providing extra security and safety

Hydrocarbon Energy Saving: Green and Environmentally Friendly

Using green and eco-friendly hydrocarbon refrigeration system, based on the principle of zero damage to the ozone with zero greenhouse effect, while reducing energy energy consumption to 8kW/24H;

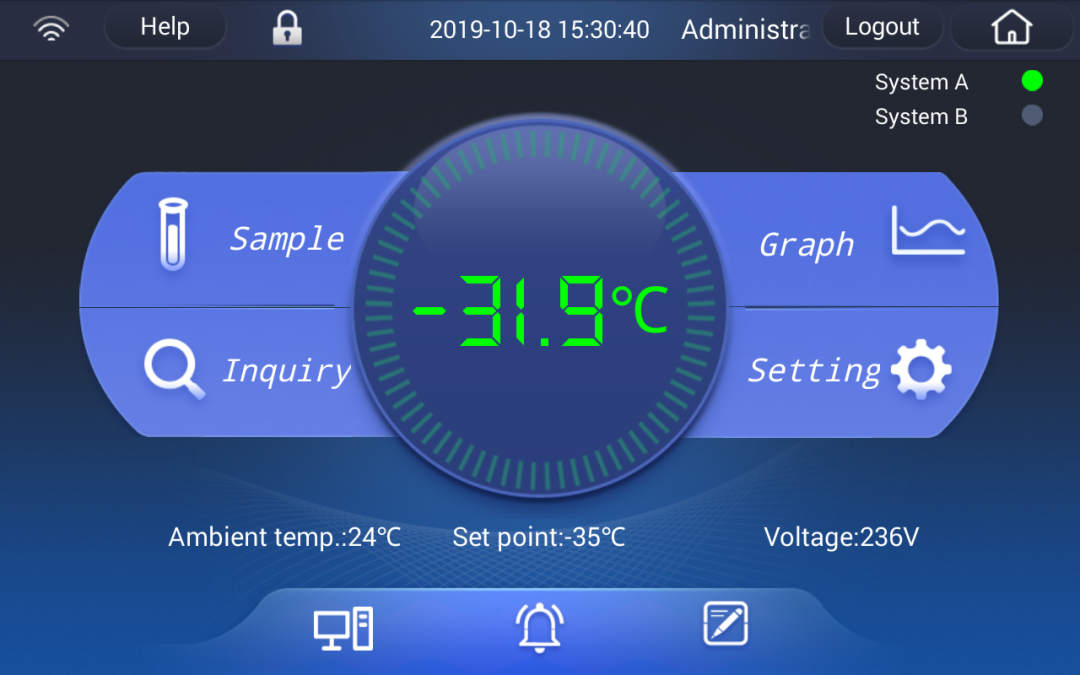

Microcomputer Control System：

Microcomputer electronic thermostat, LCD/LED temperature display, display precision 0.1℃, inside temperature -10~-30°C (adjustable).

Inside temperature, voltage, ambient temperature are displayed simultaneously.

Multiple alarm functions: including high temperature alarm, low temperature alarm, sensor fault alarm, power off alarm, low battery alarm, open door alarm, high ambient temperature alarm.

Sound and light alarm mode, attachable to remote alarm interface.

More than 24 hours constant alarm warning after power outage.

Standard configuration: RS485 port.

Standard USB interface and clock-in function.

Superior Thermal Insulation Performance

70mm super thick insulation layer design, superior thermal insulation and energy saving effect. Auto-closing door hinge design, the door suspends when its opening angle is more than 70 degrees while it closes once the angle is less than 70 degrees, which is easy to access while avoiding cold energy loss.
