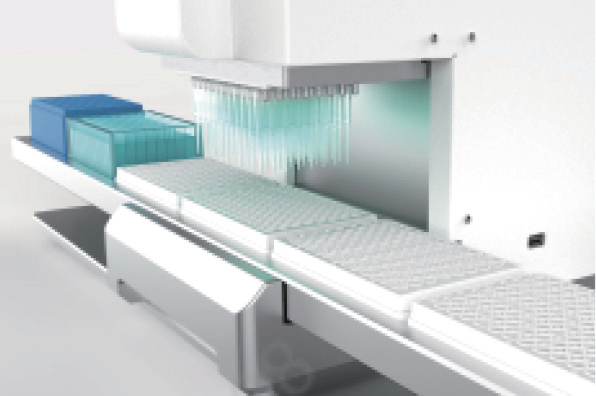

Automatic Liquid Handling Workstation

The automated liquid handling workstation is designed to provide liquid handling solutions for genomic, cellular, protein and other workflows—in areas such as medical, IVD(In Vitro Diagnosis), drug discovery, biopharma, agriculture and synthetic biology as key examples.

Product Features

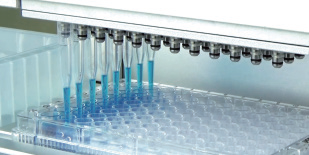

Liquid Transfer

Liquid transfer, such as pipetting from reagent reservoir, Centrifuge tube to 96-well plate, 96-well plate replication etc., mostly in cell culture, compound addition, reagent addition and PCR/qPCR setup.

Continuous Dispensing

Continuous dispensing, such as reagent kit, sub package, reagent addition as key examples.

Serial Dilution

Serial dilutions with changing or unchanging tips, mostly in ELISA, Microbe identification

384-well Liquid Transfer

384-well liquid transfer using special adaptor for 384-well plates.

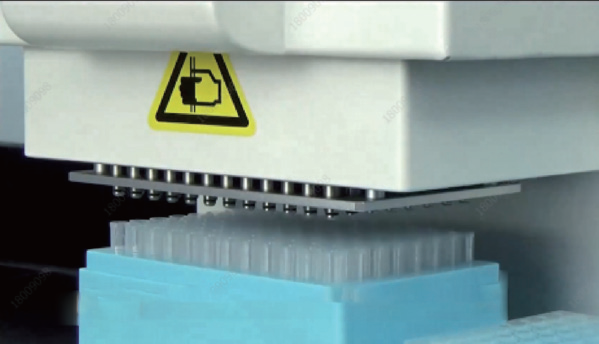

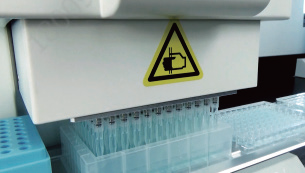

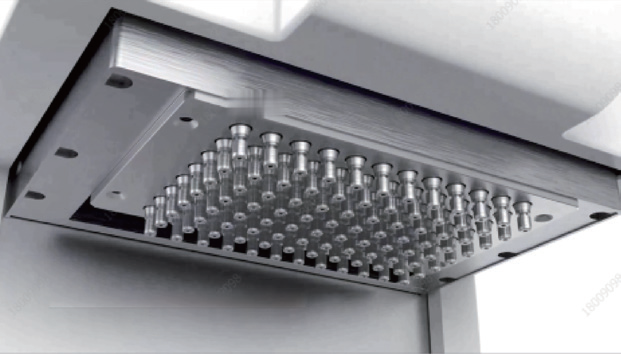

Precise 96 channel liquid handling with loading or unloading tips automatically

Reliable sealing and versatility between channels ensure precise pipetting.

96 channel pipetting increases speed, 1~20μl head for optimal pipetting as low as 0.5 μL, 5~200μL head suitable for most experiments.

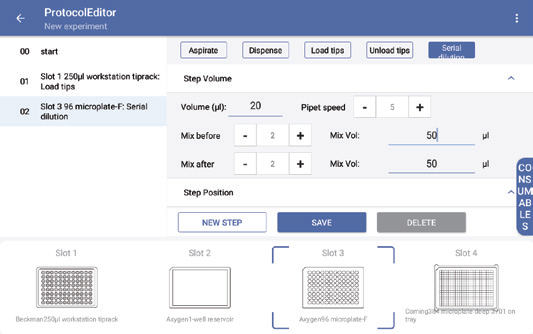

Friendly and powerful operating software

Multiple pipetting modes and parameters are preset. Automatic calculation of the optimal pipetting depth and angle or adjusting the position of pipetting (X/Z axis) as needed.

Free to choose consumables as you need

Consumables can be selected according to the experimental requirements. Automation tips ensure high precision. General tips lower costs. Customization adaptor for non-SBS format consumables.

Small Size

Can be placed in a clean bench or safety cabinet.

Specifications

Model
Description
LHW-200S4
Net dimensions (W*D*H)(mm):600*285*460; Minimum liquid displacement volume:5μL; Pipetting range:5-200μL; Pipetting precision: 200ul separat 5 μl CV< 3%; 20μl separat 1μl CV< 3%; Pipetting accuracy:200ul separat 5μl +/- 2%; 20μl separat 1μl+/- 2%; Plate number:4
LHW-200S6
Net dimensions (W*D*H)(mm):885*285*460; Minimum liquid displacement volume:5μL; Pipetting range:5-200μL; Pipetting precision: 200ul separat 5 μl CV< 3%; 20μl separat 1μl CV< 3%; Pipetting accuracy:200ul separat 5μl +/- 2%; 20μl separat 1μl+/- 2%; Plate number:6
