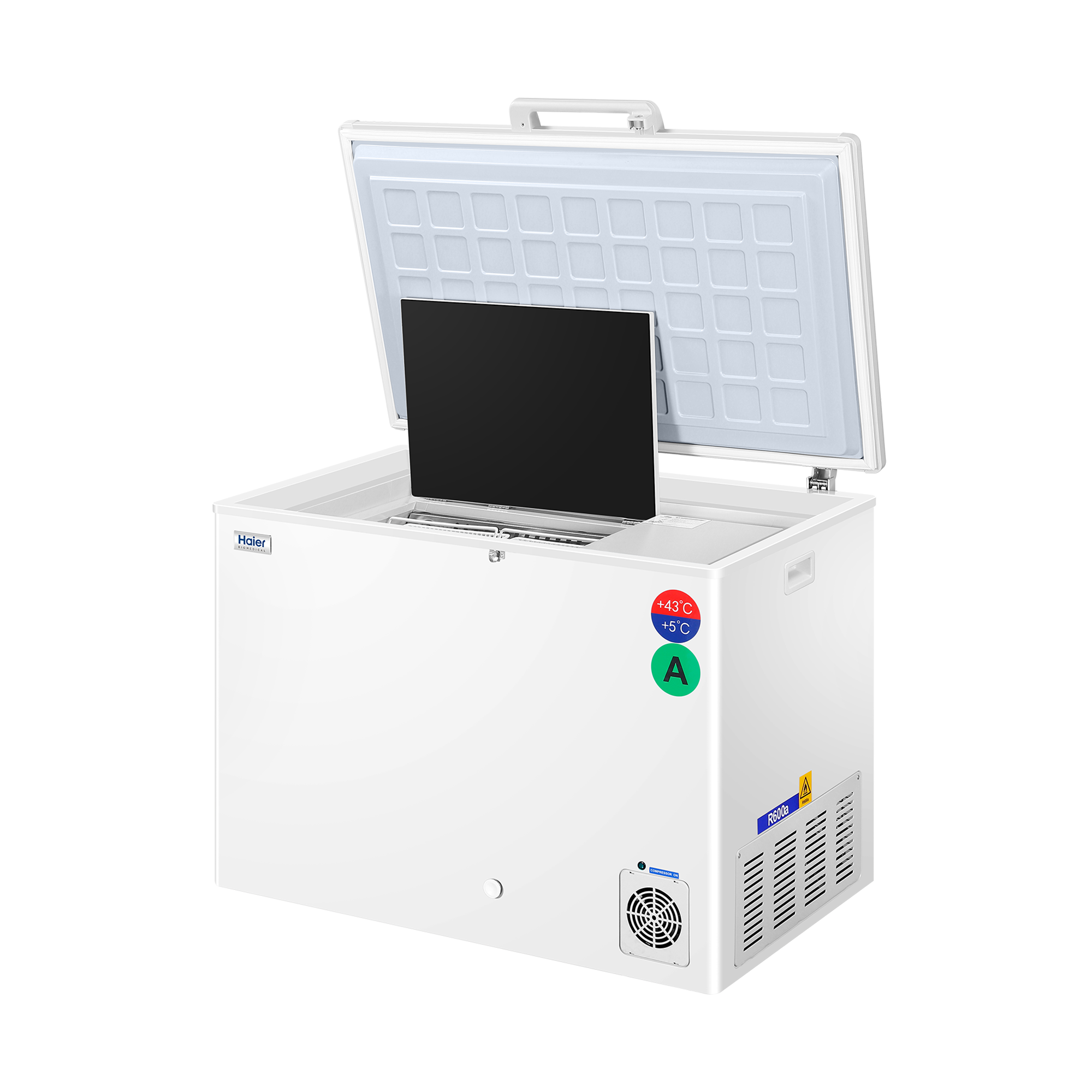

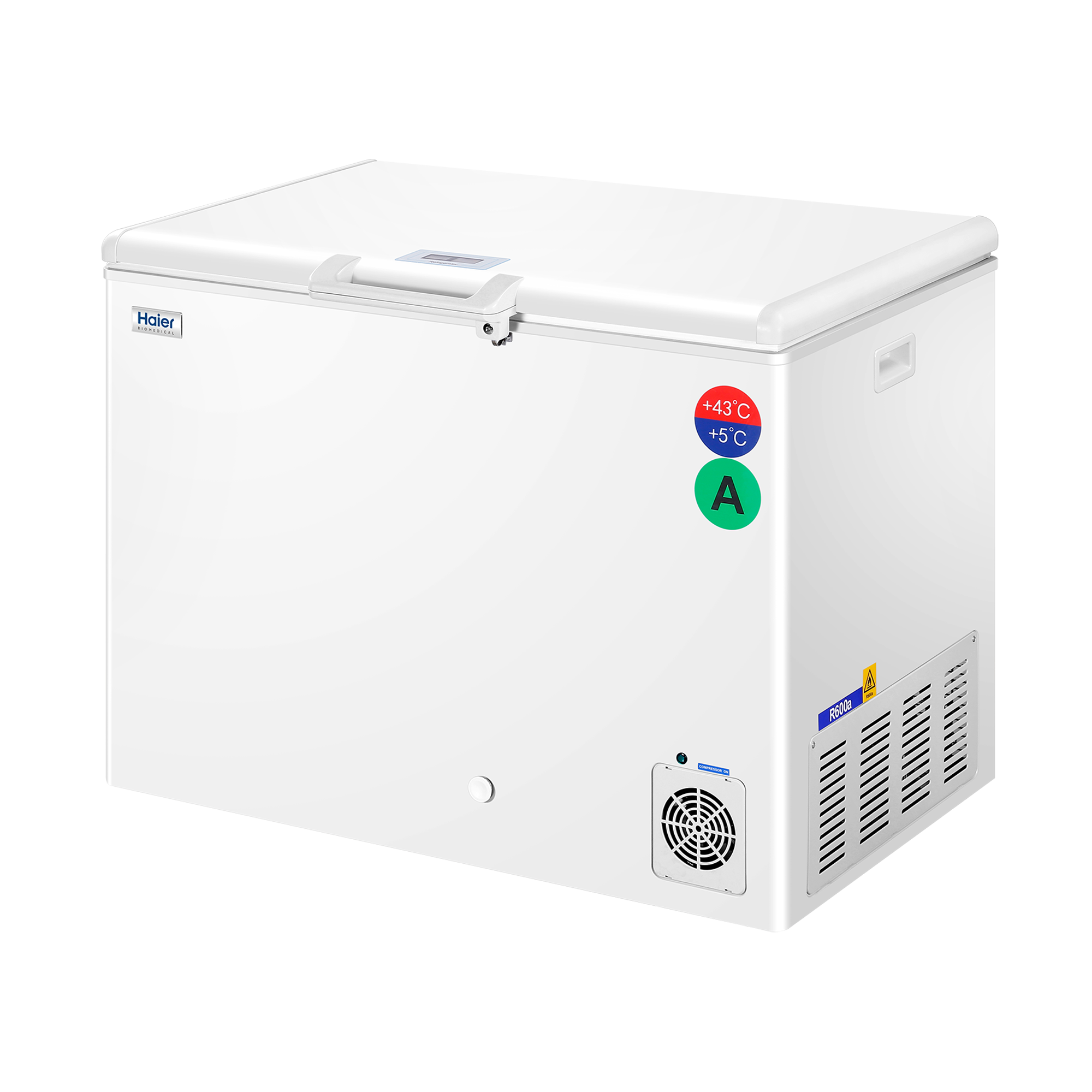

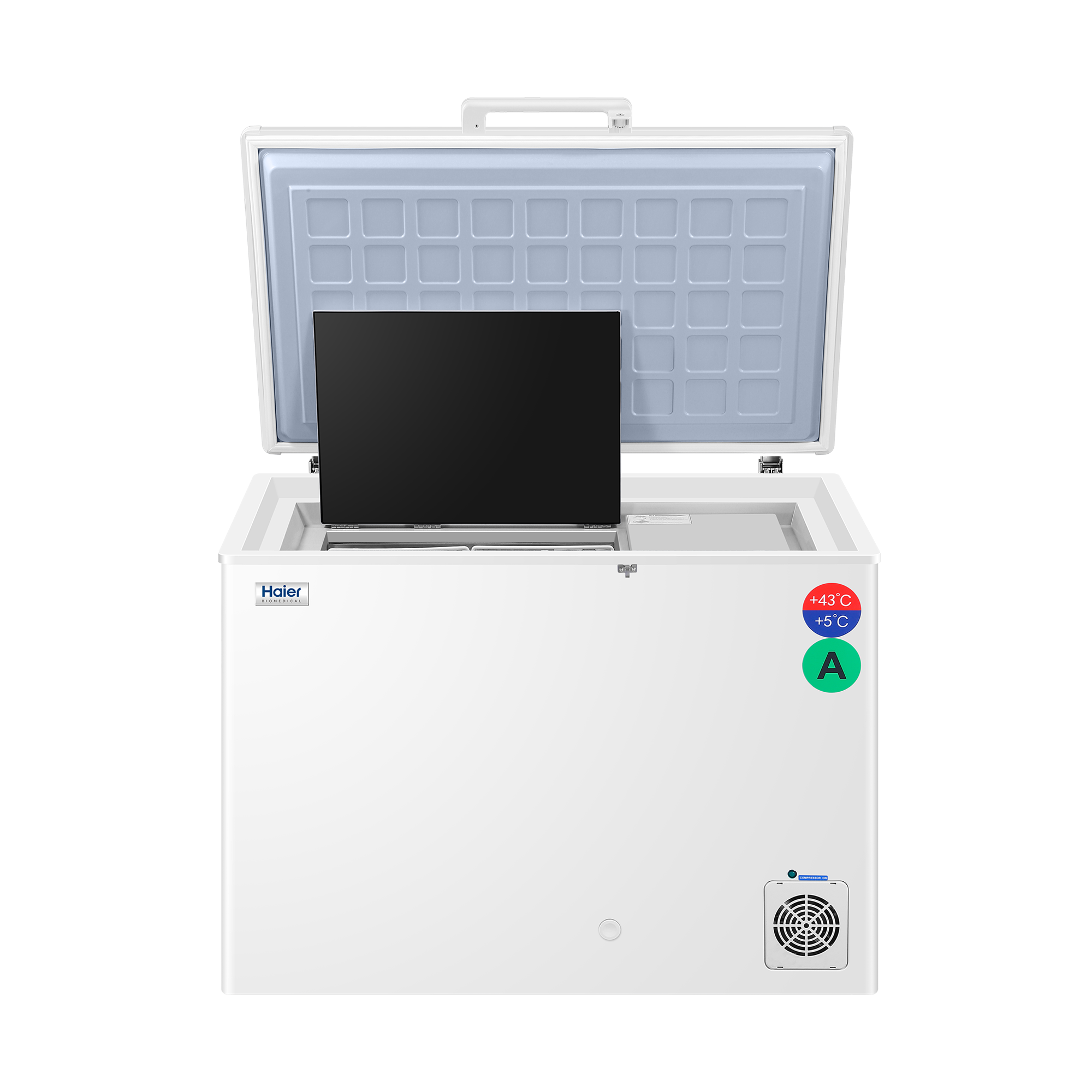

Solar Direct Drive Vaccine Refrigerator HTC-110 112

EMS-powered wireless remote monitoring combined with WHO-certified precision, long hold-over, and green design – the ultimate vaccine storage solution.

Product Features

Ergonomic Design

Intelligent control, no adjustment required, temperature display at moderate height for anytime check; safety door lock; low DC voltage for personal safety; plug-and-play quick plug with polarity error-proof; external door handle with lock to prevent accidental opening; built-in handgrips on both sides for easy movement.


Superior Performance

WHO PQS certified; Class A antifreeze; excellent hold-over times; low-temperature thermal compensation to prevent vaccine freezing; 140mm insulation; wide ambient working range 5~43°C; internal/external double door design.


Temperature Control

Electronic temperature controller, digital display precision 0.1°C, control range 2°C-8°C; EMS wireless remote monitoring of temperature, compressor operation and door status; 4.3-inch color LCD screen.


Safety System

Sensor error alarm, high/low temperature alarm; sound buzzer + flashing light; purpose-designed compressors and fans for reliability.


Environmental Protection

Eco-friendly hydrocarbon refrigerant R600a; cold-rolled steel shell, alumina inner liner, easy to recycle; ultra-low GWP; no batteries required.

Specifications

Model Cabinet Type Climate Type Cooling Type Defrost Mode Refrigerant Sound Level(dB(A)) Temperature Range(℃) Vaccine Freeze Protection Classification Controller Display Power Supply(V) Maximal Current(A)(24VDC) Energy Consumption
HTC-110 Upright H Direct Cooling Manual HC ≤30 2~8 Grade A Microprocessor 4.3-inch LCD Screen 24VDC 5 Cool Down Test(kWh/24h)0.62
HTC-112 Upright H Direct Cooling Manual HC ≤30 2~8 Grade A Microprocessor 4.3-inch LCD Screen 24VDC 5 Cool Down Test(kWh/24h)0.62
