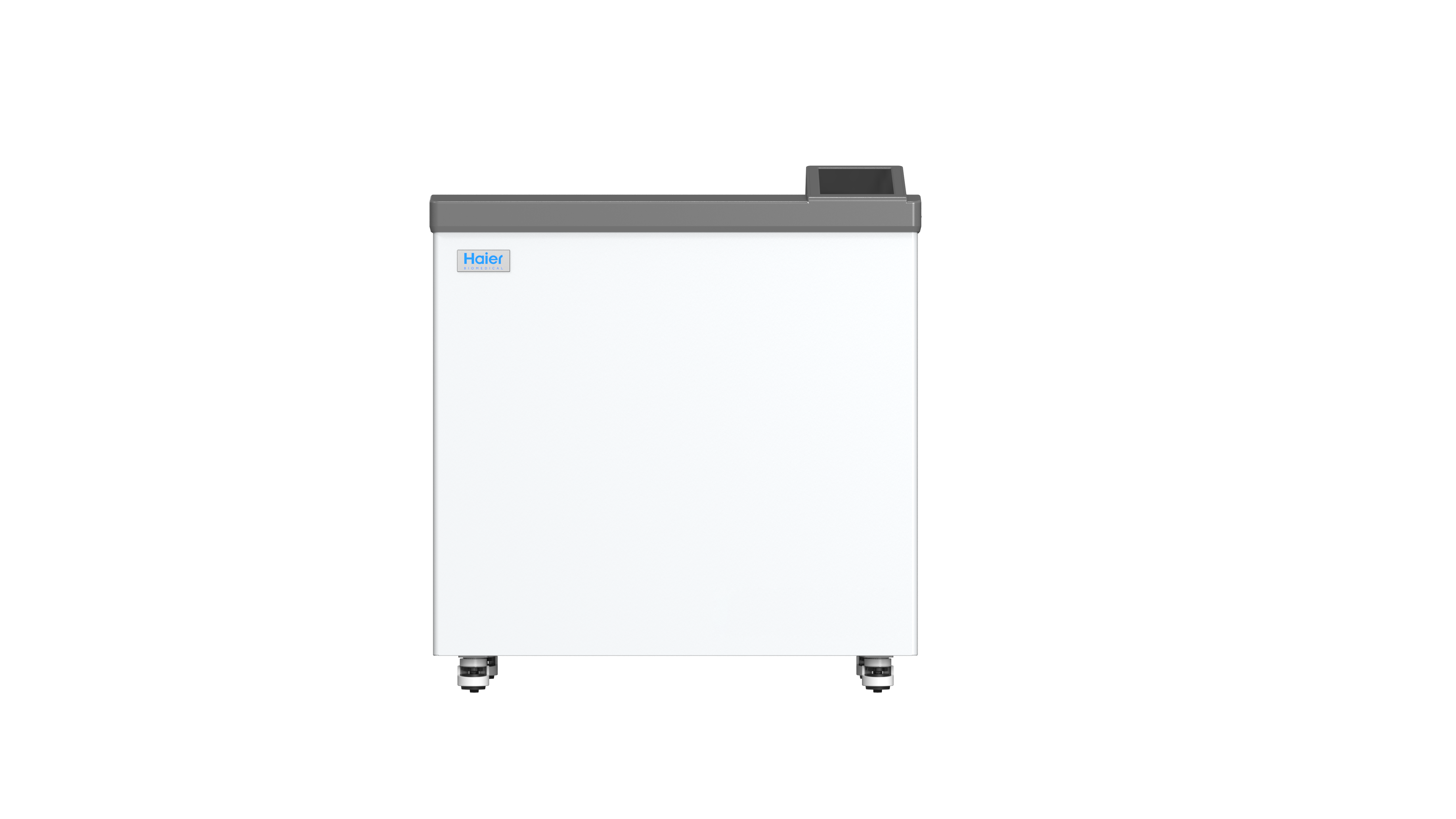

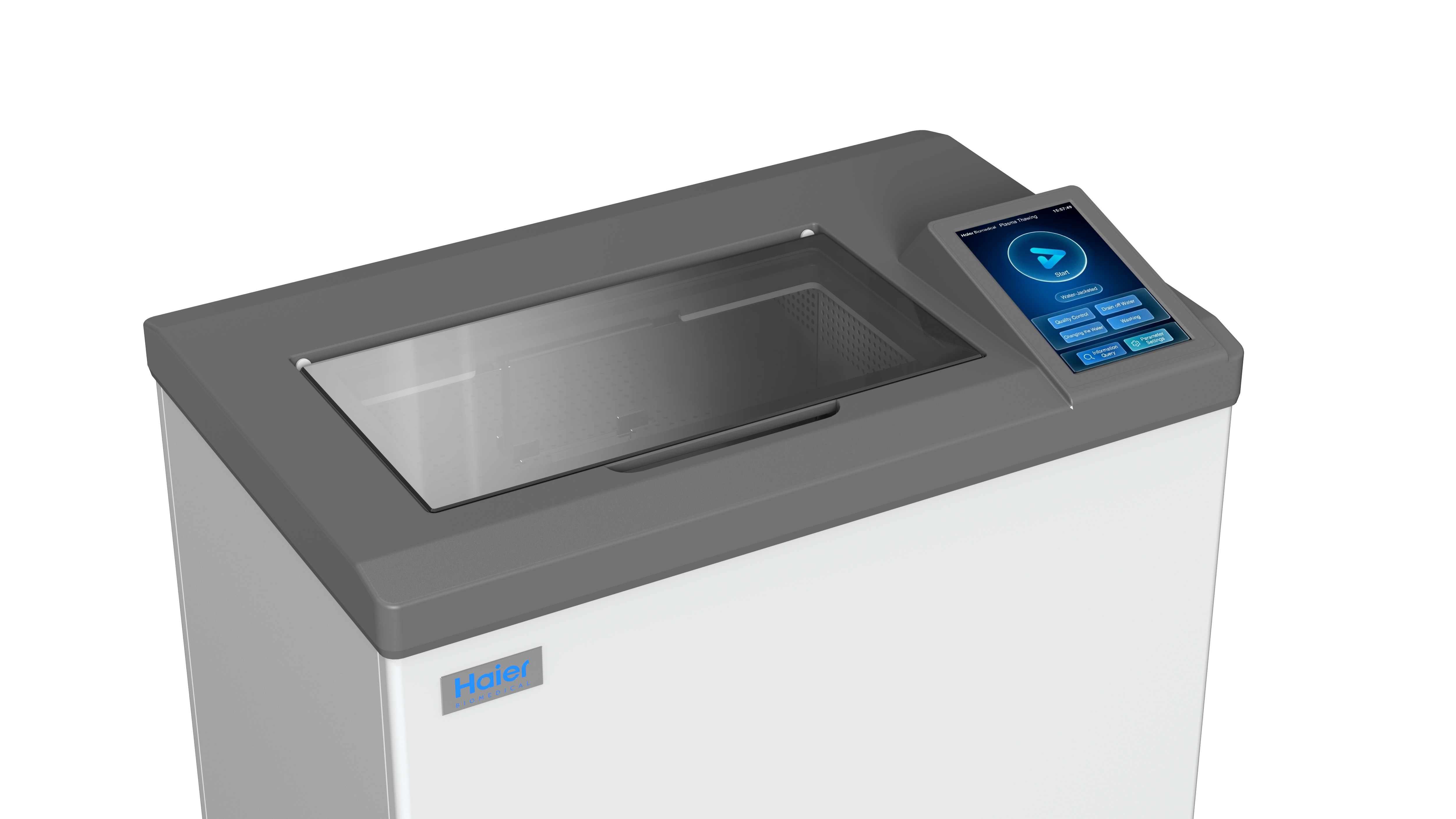

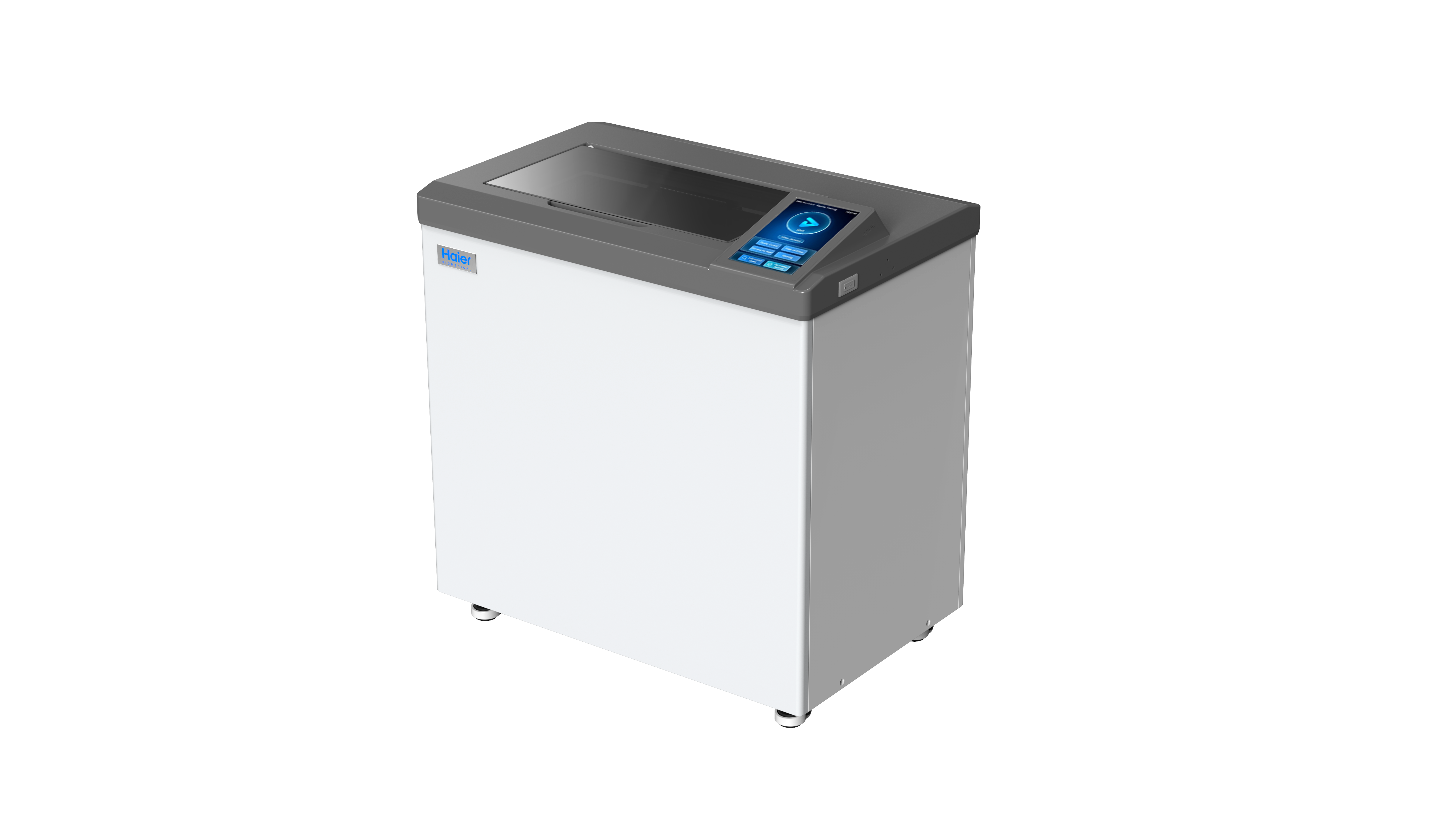

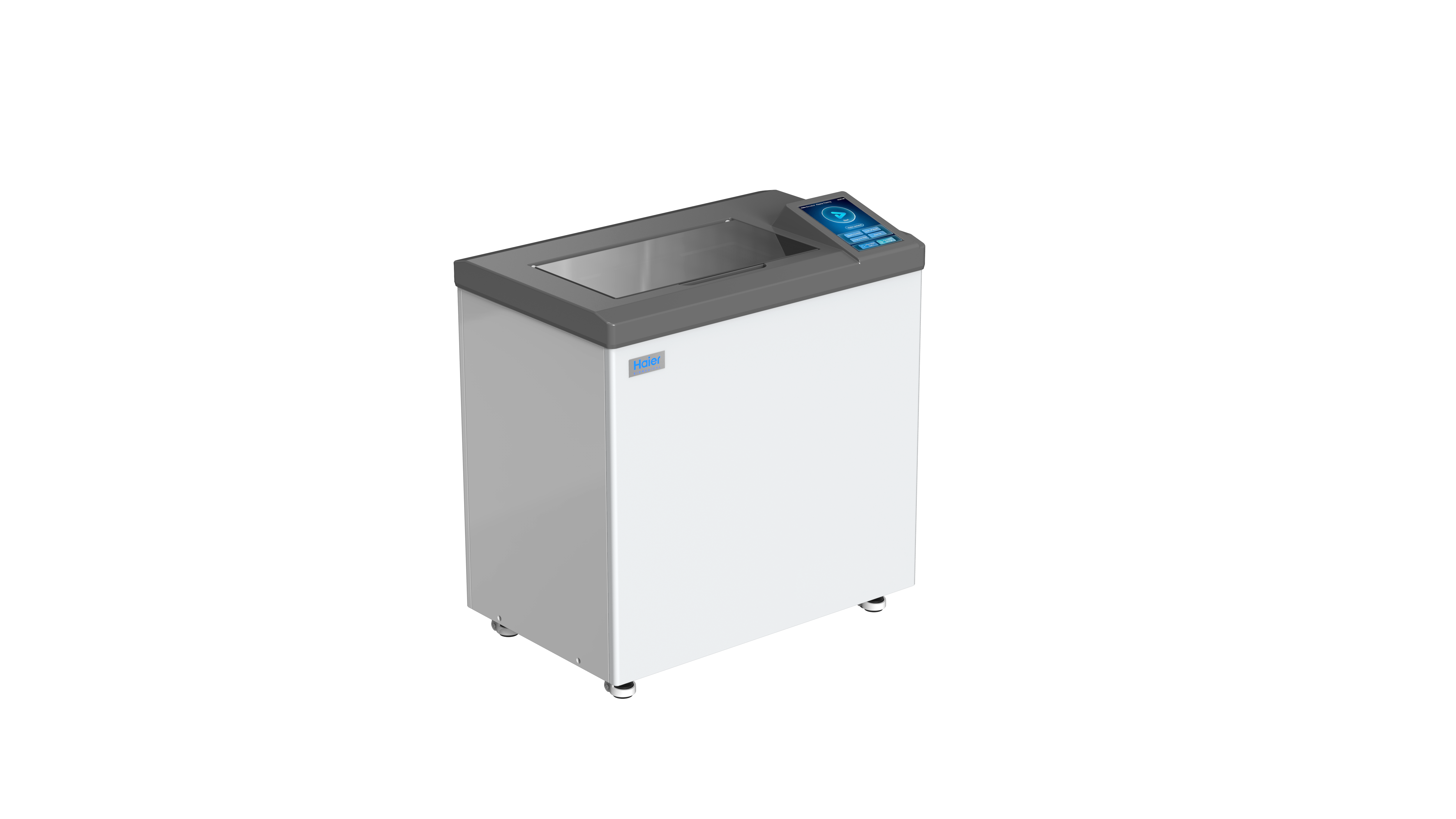

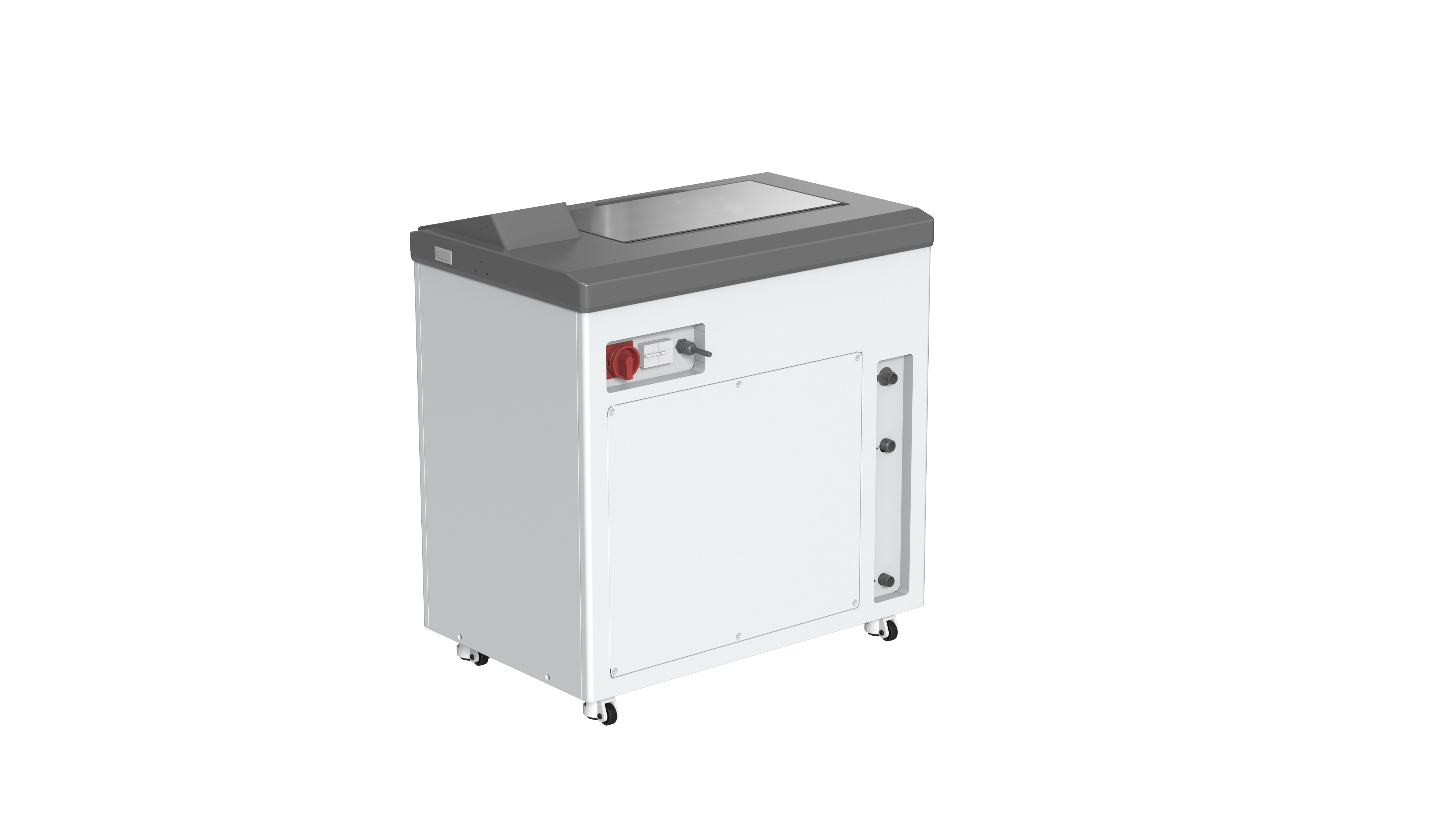

HRJ-L36S

Plasma Thawing

Suitable for use in blood centres and supply institutions, as well as hospital transfusion departments, for thawing and rewarming frozen plasma and cryoprecipitated coagulation factors. It improves operational efficiency, shortens thawing times, and helps ensure blood quality and safety.

Download

Product Features

Reciprocating Water Circulation for Enhanced Thawing Efficiency

● Swing System: The reciprocating swing motion during thawing accelerates heat exchange between plasma and water, significantly reducing time.

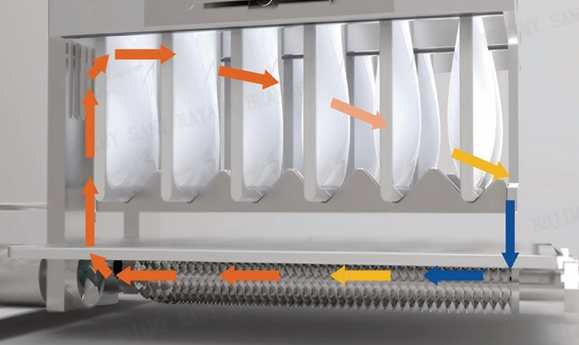

● Water Circulation System: Dual upper and lower circulation design ensures stable and uniform water temperature inside the chamber.

Dual Thawing Modes for Flexible Use

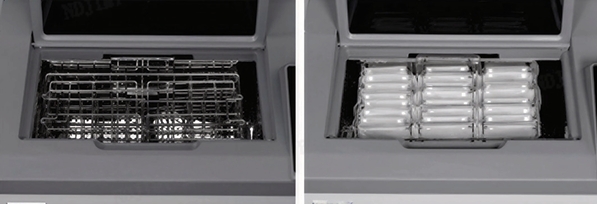

● Supports both water-bath (wet) and water-insulated (dry) thawing modes, offering flexible options while ensuring blood safety.

● The patented dry-bag isolation design enables convenient and safe operation.

Multiple Working Modes for Speed and Efficiency

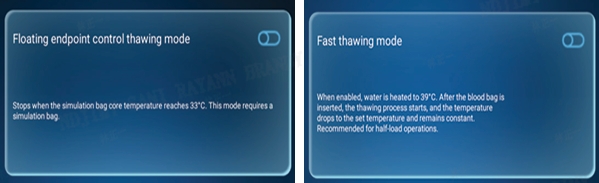

● A wide range of working modes is available: standard thawing, manual thawing, floating endpoint, rapid thawing, and emergency thawing, allowing users to switch modes based on different clinical needs for targeted and efficient thawing.

Process Traceability

● Simulated frozen blood bag with PT100 sensor enables precise temperature tracking throughout the thawing process.

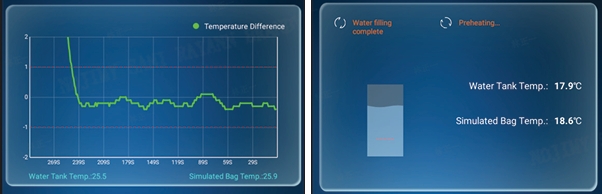

● The touchscreen interface records temperature curves, thawing time, and operation logs in real time.

Specifications

Model	Number of Melting Positions	Characteristic Temperature Point (°C)	Heating Power (W)	Product Dimensions (W/D/H)(mm)	Power Supply
HRJ-L36S	Wet 36 / Dry 12	37ºC	3000W	890585975	220~ 240V AC 50/60Hz
